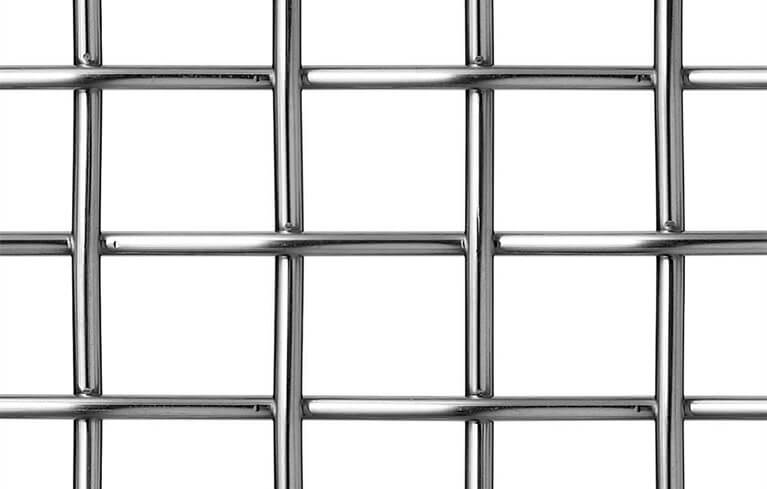

Clear Mesh Screen

Description:

Clear mesh screen,one of most popular thin woven wire meshes with mesh from 1×1 to 500×500,wire diamater can be 0.025mm to 2.03mm(0.001 inch to 0.08 inch) ,the aperture can be 0.0254 mm to 23.37mm (0.001 inch to 0.92 inch). The aperture will be larger when the wire diameter become more thin.
The variety of woven wire mesh materials and steel wire mesh weave patterns make the finished clear mesh screen has many types and finished woven mesh products.
So it is a versatile wire mesh product,have a widely application in industrial, commercial and decoration.

Materials: Stainless steel 201,304,304L,316,316L grade
Weaving methods: Plain weave, Twilled weave, Dutch weave,Dutch twill

Specification:

Wire diameter : 0.02mm- 2.0mm
Meshes : 1–635 meshes
Width : Standard less than 2000mm
Length : 30 mts/Coil or customized rolls/sheets.

Clear mesh screen is available in a variety of raw materials,wire diameter,meshes (aperture),weave methods and also can be cut and form to the special sheets or types according to the applications and projects requirements.

Application:

Clear mesh screen has endless applications in industrial,commercial and decoration. Such as filters, sieves, separators, strainers, baskets, gas diffusion, drying,automotive grill mesh,breather vents, construction and building meshes,craft papermaking,decorative mesh,fan guard,filtering liquids and gases,fireplace screen,food drying,foundation vent meshes,gutter guard mesh,high transparency mesh,hydraulic filters,insect screen,lamp shade,oil strainers,pest control,security,separate fuel from water

Woven wire mesh size

Mesh	Wire diameter		Aperture
Mesh	Inch	mm	Inch	mm
1×1	0.08	2.03	0.92	23.37
2X2	0.063	1.6	0.437	11.1
3X3	0.054	1.37	0.279	7.09
4X4	0.063	1.6	0.187	4.75
4X4	0.047	1.19	0.203	5.16
5X5	0.041	1.04	0.159	4.04
6X6	0.035	0.89	0.132	3.35
8X8	0.028	0.71	0.097	2.46
10X10	0.025	0.64	0.075	1.91
10X10	0.02	0.51	0.08	2.03
12X12	0.023	0.584	0.06	1.52
12X12	0.02	0.508	0.063	1.6
14X14	0.023	0.584	0.048	1.22
14X14	0.02	0.508	0.051	1.3
16X16	0.018	0.457	0.0445	1.13
18X18	0.017	0.432	0.0386	0.98
20X20	0.02	0.508	0.03	0.76
20X20	0.016	0.406	0.034	0.86
24X24	0.014	0.356	0.0277	0.7
30X30	0.013	0.33	0.0203	0.52
30X30	0.012	0.305	0.0213	0.54
30X30	0.009	0.229	0.0243	0.62
35X35	0.011	0.279	0.0176	0.45
40X40	0.01	0.254	0.015	0.38
50X50	0.009	0.229	0.011	0.28
50X50	0.008	0.203	0.012	0.31
60X60	0.0075	0.191	0.0092	0.23
60X60	0.007	0.178	0.0097	0.25
70X70	0.0065	0.165	0.0078	0.2
80X80	0.0065	0.165	0.006	0.15
80X80	0.0055	0.14	0.007	0.18
90X90	0.005	0.127	0.0061	0.16
100X100	0.0045	0.114	0.0055	0.14
100X100	0.004	0.102	0.006	0.15
100X100	0.0035	0.089	0.0065	0.17
110X110	0.004	0.1016	0.0051	0.1295
120X120	0.0037	0.094	0.0064	0.1168
150X150	0.0026	0.066	0.0041	0.1041
160X160	0.0025	0.0635	0.0038	0.0965
180X180	0.0023	0.0584	0.0033	0.0838
200X200	0.0021	0.0533	0.0029	0.0737
250X250	0.0016	0.0406	0.0024	0.061
270X270	0.0016	0.0406	0.0021	0.0533
300X300	0.0051	0.0381	0.0018	0.0457
325X325	0.0014	0.0356	0.0017	0.0432
400X400	0.001	0.0254	0.0015	0.37
500X500	0.001	0.0254	0.001	0.0254
635X635	0.0008	0.0203	0.0008	0.0203
(Available in stainless steel 304, 304L, 316 & 316L grade)
